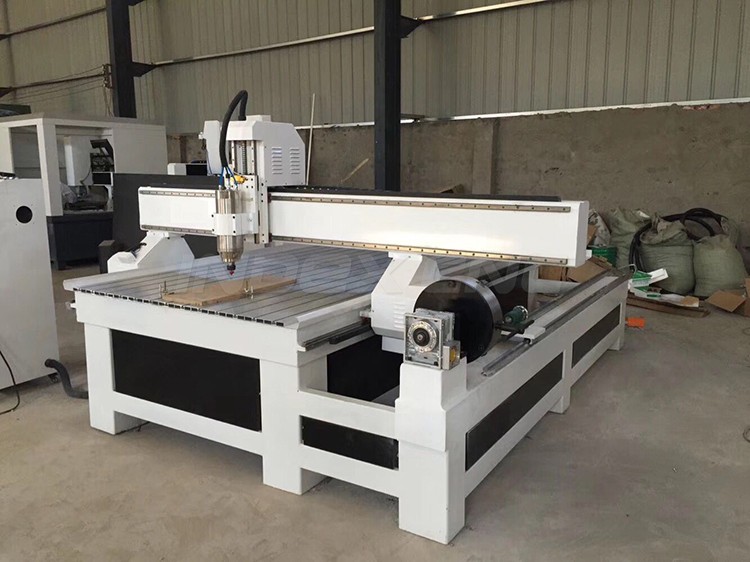

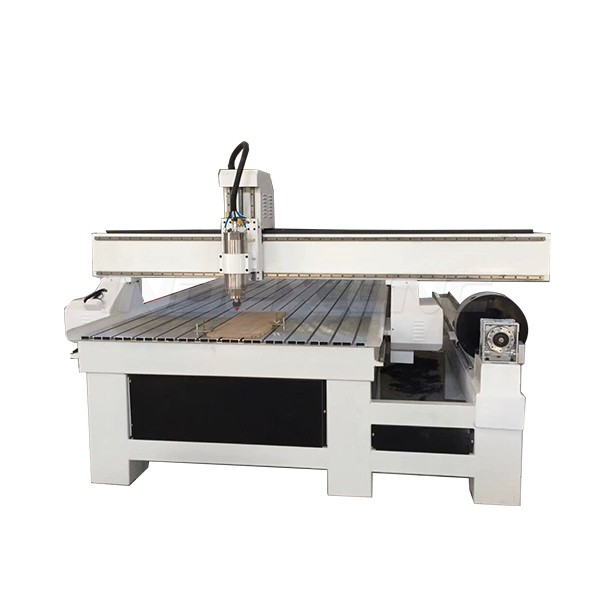

4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325 Wood Working Cnc Router for Sale
1.Brief Intruction
With working area of 1300*2500*200mm, the machine is widely used in furniture industry.
We use high quality components on this machine like 3.0 kw HSD air cooling spindle, 118 big stepper motors and Yako drivers, Taiwan Hiwin linear rails and TBI ball screw, DSP control system and so on.
We also have some optional parts for you to choose: Chinese or Germany Becker vacuum pump, dust collector, mist cooling system, rotary system and so on. Some main parts on the machine can be changed according to your requirements.
2.Performance parameter for RC1325 Carved Wooden Furniture
|
NO. |
Description |
Parameter |
|
1 |
Table Size |
1360×2940mm |
|
2 |
Traveling Positioning Accuracy |
±0.03/300mm |
|
3 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
|
4 |
Table Surface |
Vacuum and T-slot Combined |
|
5 |
Frame |
Welded Structure |
|
6 |
Transmission |
Rack and Pinion Drive |
|
7 |
Max. Power Consumption |
(Without Spindle) 3.2Kw |
|
8 |
Max. Rapid Travel Rate |
33000mm/min |
|
9 |
Max. Working Speed |
25000mm/min |
|
10 |
Spindle Power |
3.0/4.5/6/7KW |
|
11 |
Spindle Speed |
0-18000RPM |
|
12 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
|
13 |
Command Language |
G Code |
|
14 |
Computer Interface |
USB |
|
15 |
Flash Memory |
128M(U Disk) |
|
16 |
Collet |
ER25 |
|
17 |
X,Y Resolution |
<0.03mm |
|
18 |
Software Compatibility |
Type3/ Artcam Software |
|
19 |
Running Environment Temperature |
0 - 45 Centigrade |
|
20 |
Relative Humidity |
30% - 75% |
|
21 |
Packing Size |
