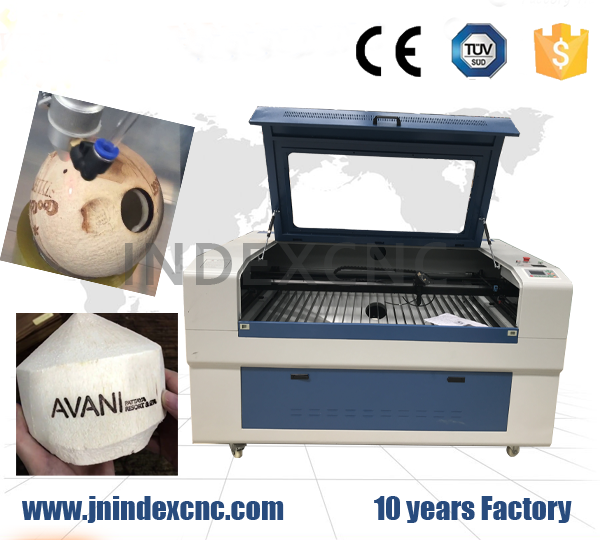

coconut sheel laser cutting and engraving machine
Product Brief Introduction
Application:
Marble, granite, tombstone, wood, acrylic, organic glass, crystal, fabric, paper, leather,
rubber, ceramic, glass and other non-metal materials,etc.
Applicable Industries
sticker cutting and engraving.Marble engraving industry,advertisement, gift packing,
shoes, garments, toys, model, decoration,
atrs and crafts, paper industry,etc.
Parameter
|
Item |
INJ1390 co2 laser cutting engraving machine |
|
Engraving Area |
1300 X 900mm |
|
Laser Power |
80W/100W/130W/150W |
|
Laser- type |
Sealed CO2 laser tube |
|
Engraving Speed |
0 - 40000mm/min |
|
Minimum Shaping Character |
English: 1 x 1mm |
|
Power Supply |
220V±10% 50HZ or 110V±10% 60HZ |
|
Resetting Positioning Accuracy |
±0.05mm |
|
Gross Power |
<1,000W |
|
Operating Temperature |
0-45°C |
|
Operating Humidity |
5- 95% |
|
Control system |
DSP ( USB port ) |
|
Graphic Format Supported |
CorelDraw AutoCAD Photoshop |
|
Driving system |
Stepper / Servo |
|
Graphic format supported |
BMP,PLT, DST, DXF, and AI |
|
Table type |
Honeycomb / Knife / Automatic up & down optional |
|
Attachment |
Water pump, Exhaust Fan, Air pump |
|
Packaging Diameter |
Depends on the laser power and optional parts |
|
Gross Weight |
Depends on the laser power and optional parts |
Machine Overall
1. Configure high power and quality laser tube, can work 3000~10,000 hours (depend on laser power).
2. DSP control system, rich function, can approach engraving on plane, gradient engraving by 360 degrees, cutting and drilling holes etc.
3. with function of restoring from poweroff, continuation function from break point.
4. Transmit files directly from Corel draw and Auto CAD,Photoshop, Tajima directly.
5. Adopt imported linear rail, high precision.
6. Motorized up and down working table makes thicker material engraving and cutting more easy.
7. LCD screen monitor and USB interface support offline working from pen driver.

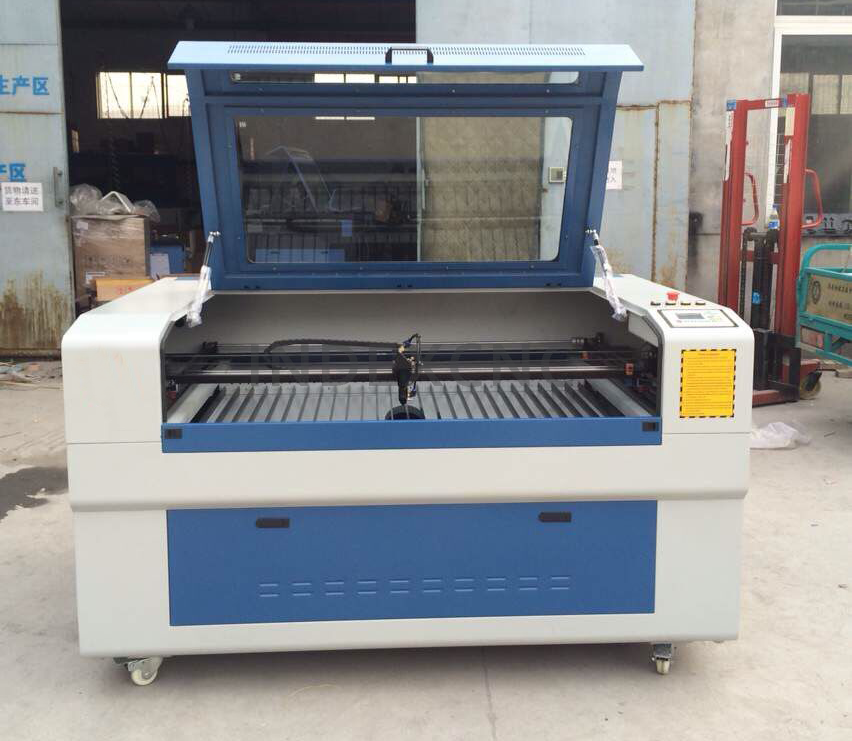

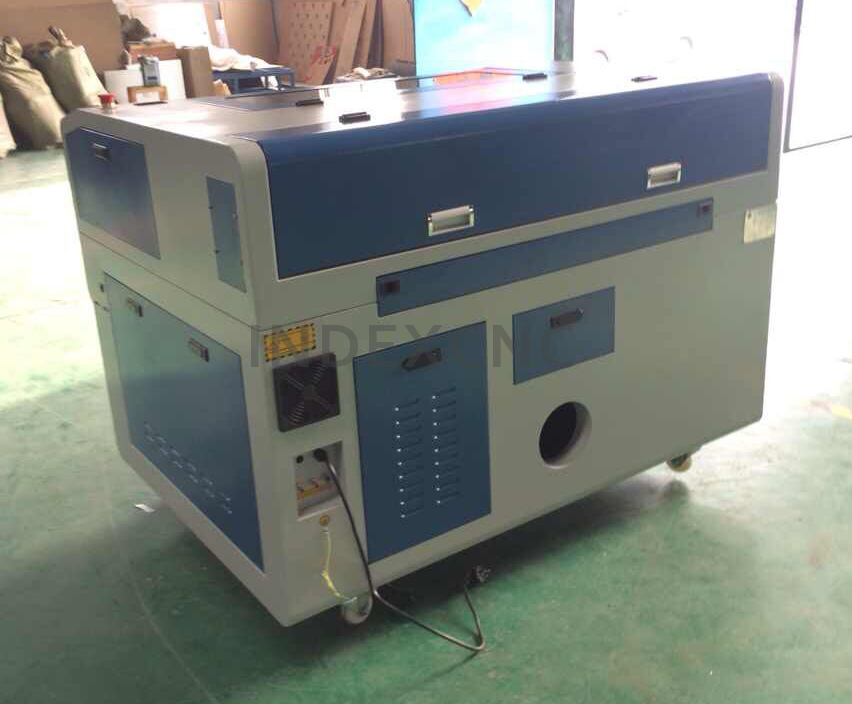

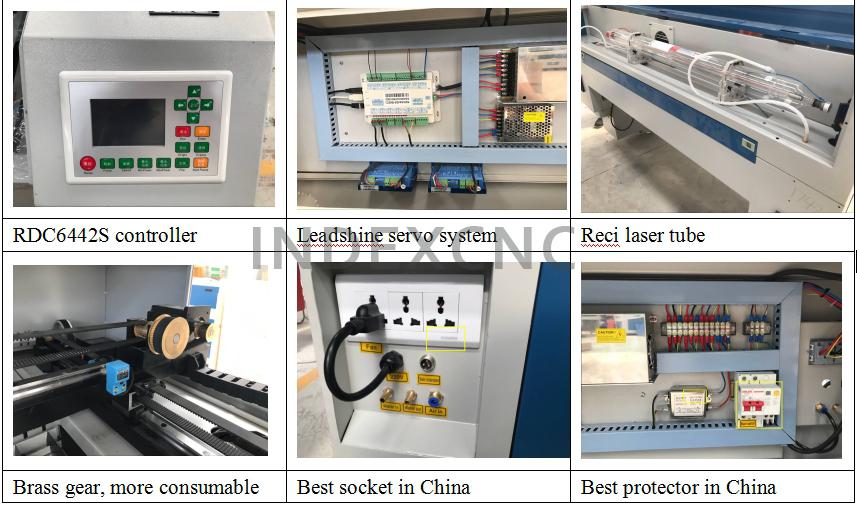

Machine details:
INJ1390 laser machine samples:
Video of laser cutting and engraving coconut
