Color laser marking machine with MOPA fiber laser source

Product Item: INJ-20W-M

Color laser marking machine

Mopa fiber laser marking machine

Fiber laser marking machine

color laser mark

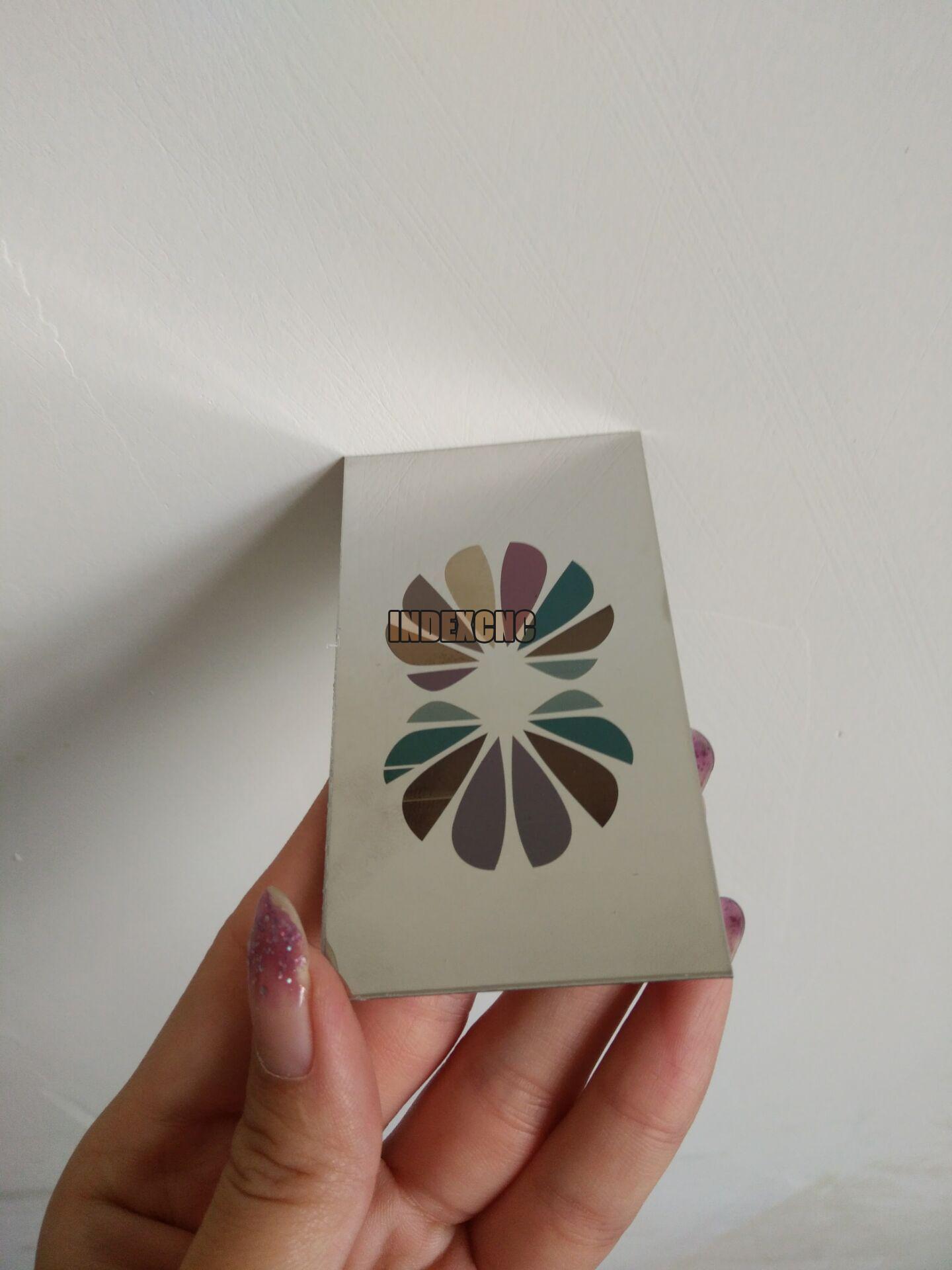

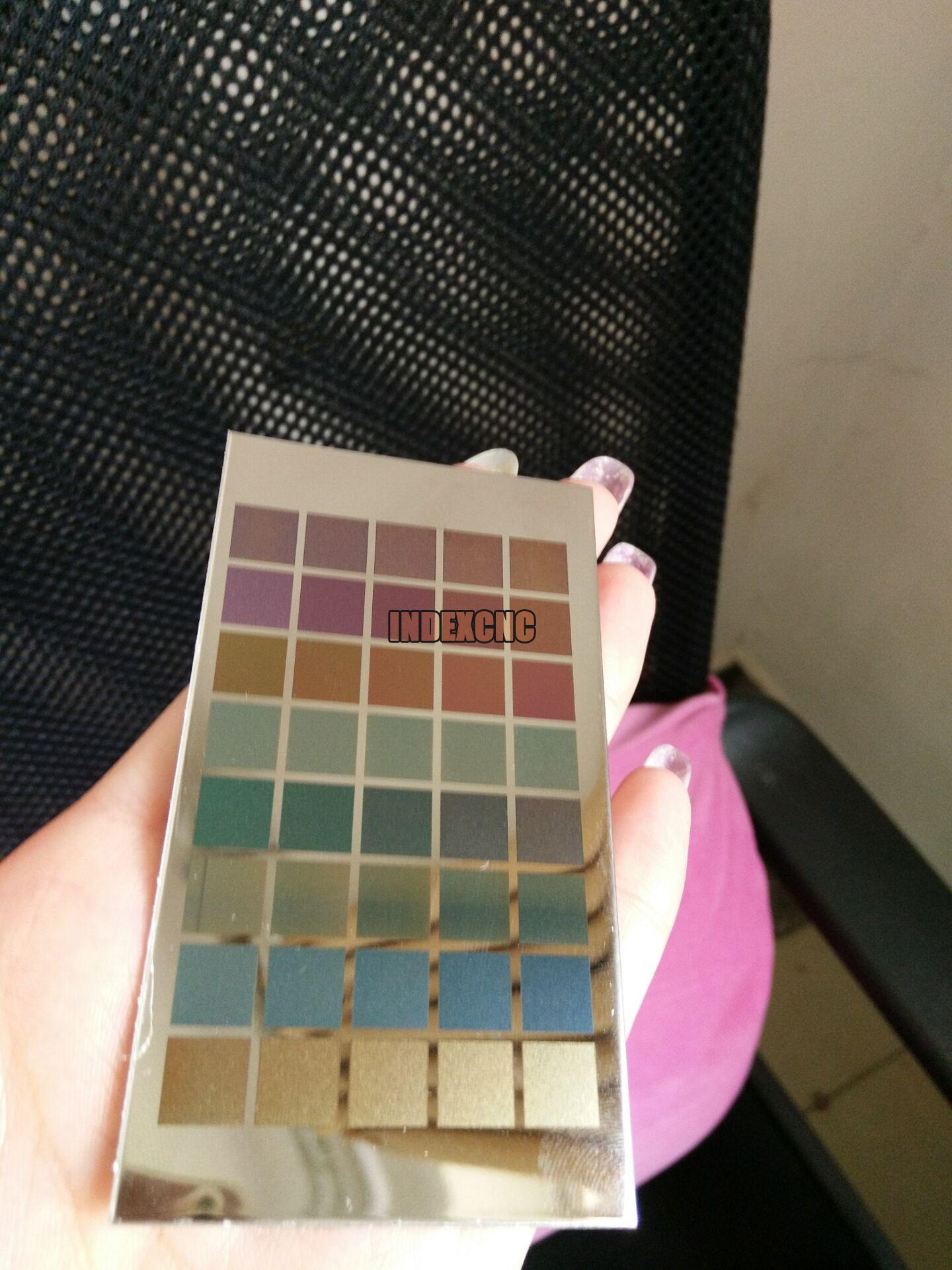

Product Manual：Color laser marking machine with MOPA fiber laser source 20W is used for marking black, white, grey and colors on metal surface such as stainless steels, titanium. It is applied in color laser marking

SPECIFICATION

Color laser marking machine with MOPA fiber laser source

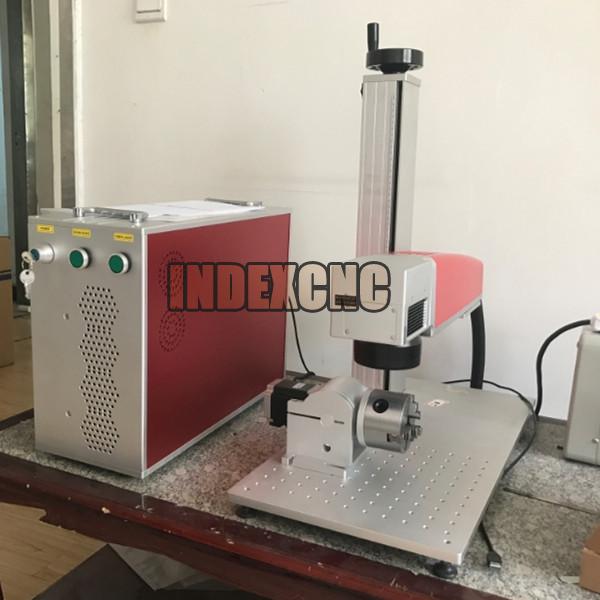

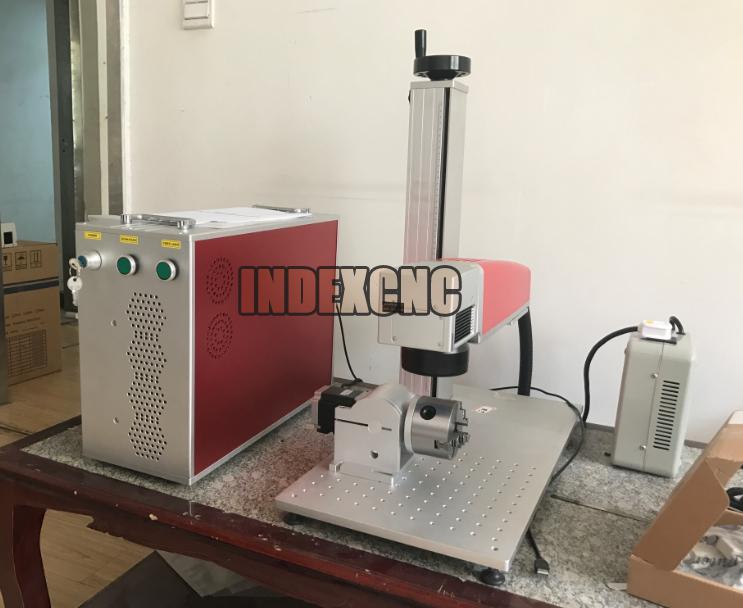

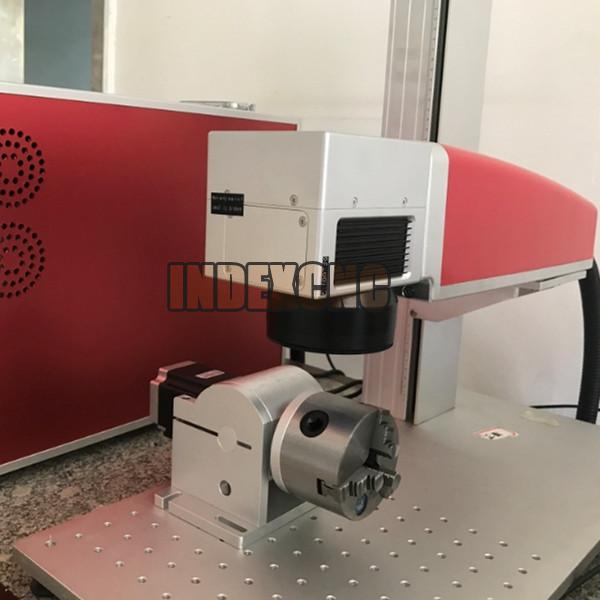

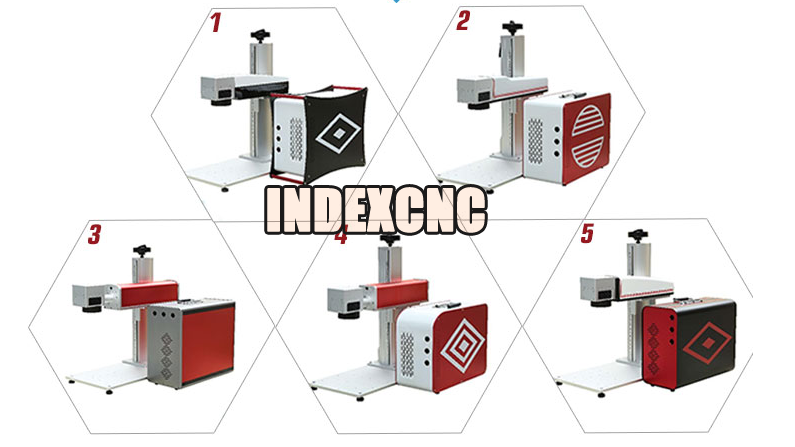

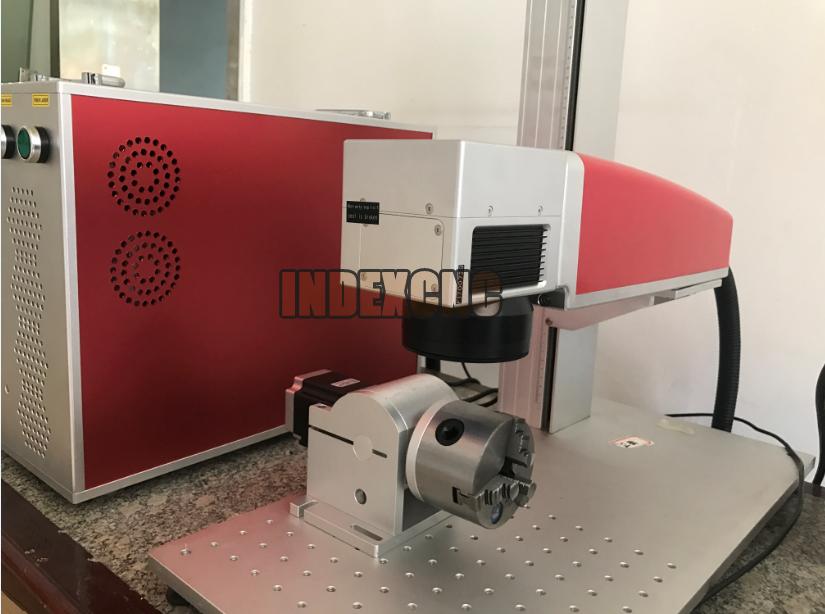

Machine structure of color laser marking machine

Product Application of color laser marking machine

This 20W air cooling portable fiber color laser marking machine widely apply to electronics, computer,

watches, hardware, many kinds of tools and other industries, and mark on the surface of many kinds of

metal material ( stainless steel, high speed steel, alloy steel, iron, aluminum and aluminum alloy, etc )

and parts of non-metallic materials ( ABS, PC etc)

Technical Parameters of color laser marking machine:

No	Item Name	Parameter
1	Model	INJ 20W
2	Laser Power	20W
3	Laser wavelength	1064nm
4	Laser type	Fiber Laser
5	Laser beam quality	M2:1.5
6	Repeat Frequency	30KHz-60KHz
7	Repeat Positioning Accuracy	0.005mm
8	Min linear width	0.01mm
9	Marking Depth	0.01-0.5mm
10	Standard Marking Area	110×110mm
11	Cooling	Air cooling
12	Rated Power Consumption	500W
13	Operating Voltage	110V- 240V/50-60 Hz/15A
14	Gross weight	80 kg
