Flying fiber laser marking machine with coveyor

Product Item: INF-20C

flying fiber laser marking machine

fiber laser marking machine

conveyor

laser macihne with coveyor

Product Manual：fiber laser marking machine with conveyor is suitable for marking jewelry, watches, phone keypad, plastic translucent keys, electronic components, etc. now the portable fiber laser engraving machine f

SPECIFICATION

Flying fiber laser marking machine with coveyor

Technology parameter of laser marking machine with conveyor

Model NO.	INF-10C	INF-20C	INFJ-30C	Remark
Laser Wavelength(um)	1.064	1.064	1.064
Laser Generator Brand	IPG/MAXPHOTONICS	IPG/MAXPHOTONICS	IPG/MAXPHOTONICS
Laser Power(W)	≥10	≥20	≥30	40W 50W optional
Galvo Marking Speed	≥7m/s	≥7m/s	≥7m/s	Max 9m/s
Marking Area	110mm	110mm	110mm	140mm optional
Marking Focus	180mm	180mm	180mm
Marking Content	Vector, barcode, a variety of fonts, photos, and other formats
Marking Mode	static state and dynamic state
On-line Speed	≤120m/min			Depends on marking content
Operating Temperature	5-35°C
Operating Humidity	Relative humidity is less than 95%, No condensation
Structural Materials	good-quality aluminum alloy, stainless steel
Edit Mode	Computer software to edit
Communication Interface	USB, RS232 interface
Power Supply	AV220V/50Hz
Rated Power	500W	800W	1000W
Optional Accessories	Sensor, On-line detection speed encoder, rotary marking, equipment cabinet, laser generator support			foot switch

Laser marking machine with conveyor Marking Content

Matrix and vector fonts marking. Letters, numbers, icon, symbol, one-dimensional bar codes, two-dimensional bar code, date, time, serial number, random numbers, real-time variable identification and other text marking. Static marking and online flying marking.

Laser marking machine with conveyor Applicable Material

For a variety of metal materials and some non-metallic materials, surface-treated metal material, high hardness alloys, oxides, electroplating, coating, ABS, epoxy resin, ink, plastic, PVC, aluminum, rubber, plastic, HDPE, etc.

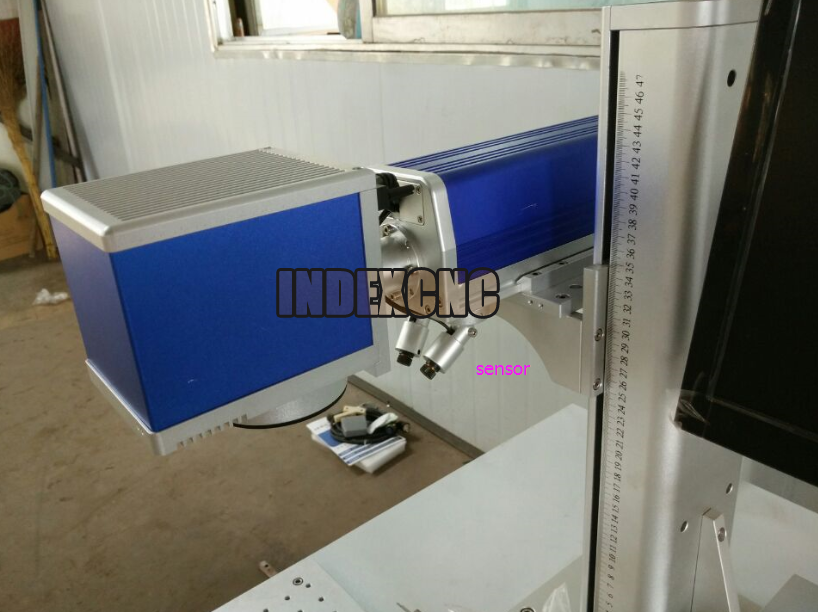

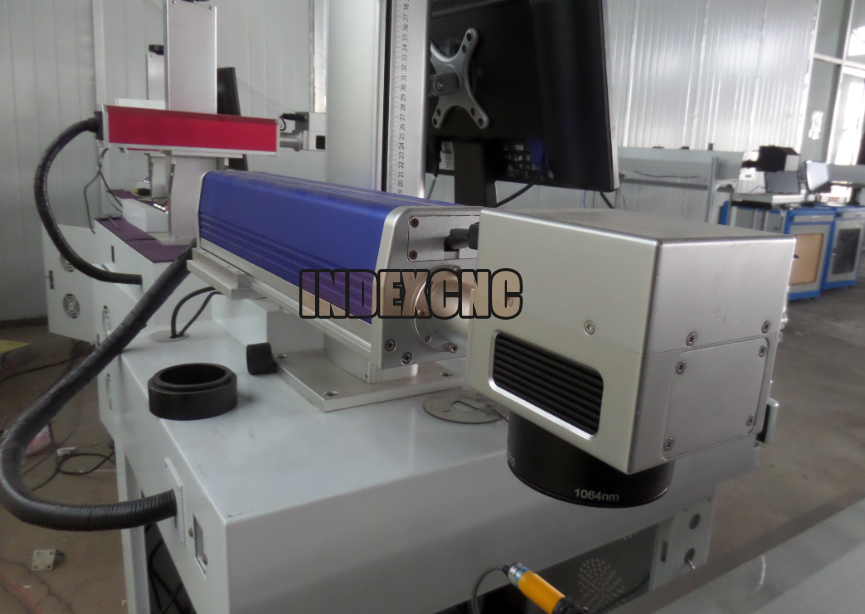

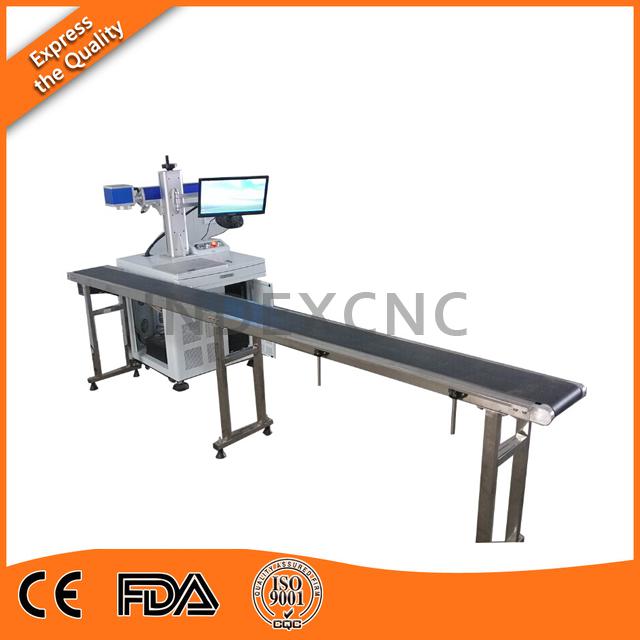

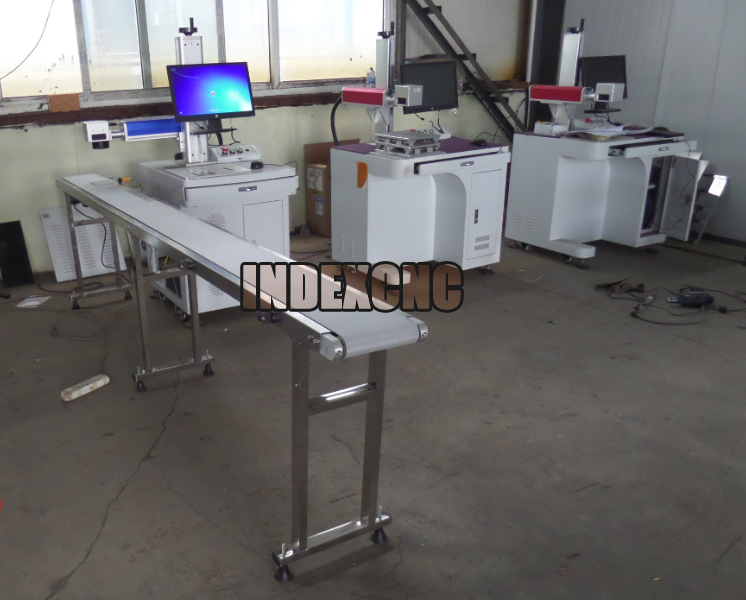

Machine pictures of laser marking machine with conveyor :
