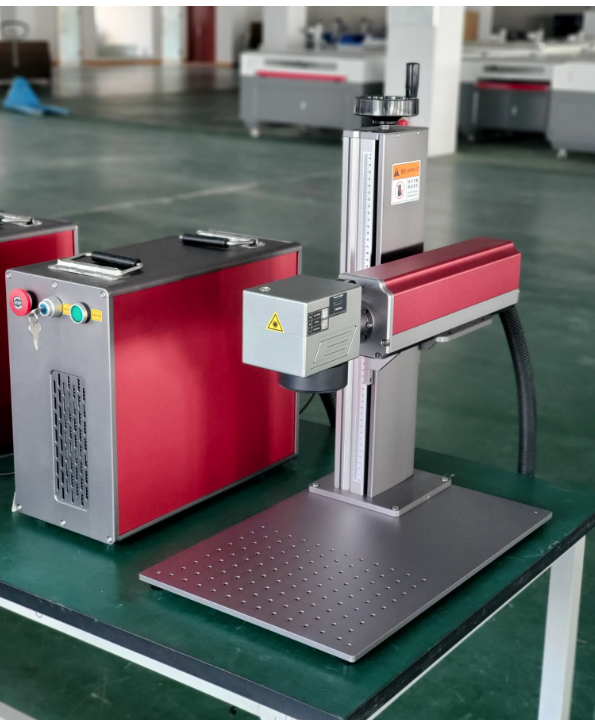

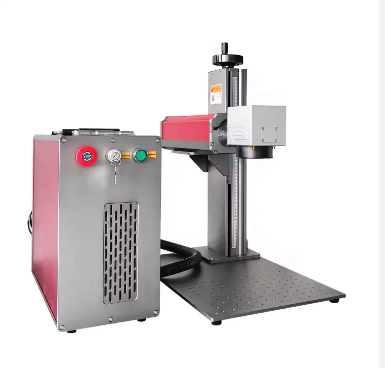

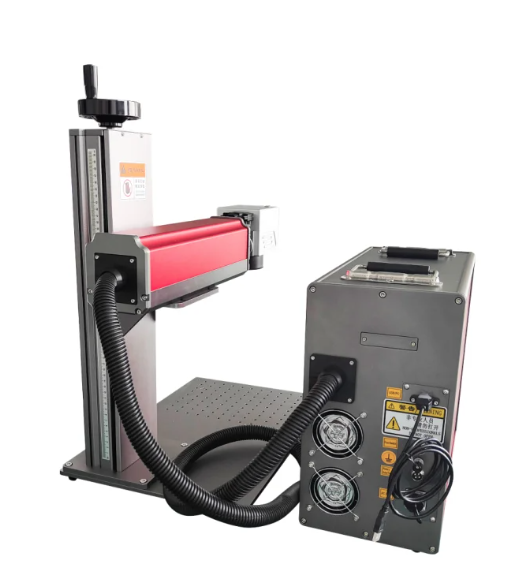

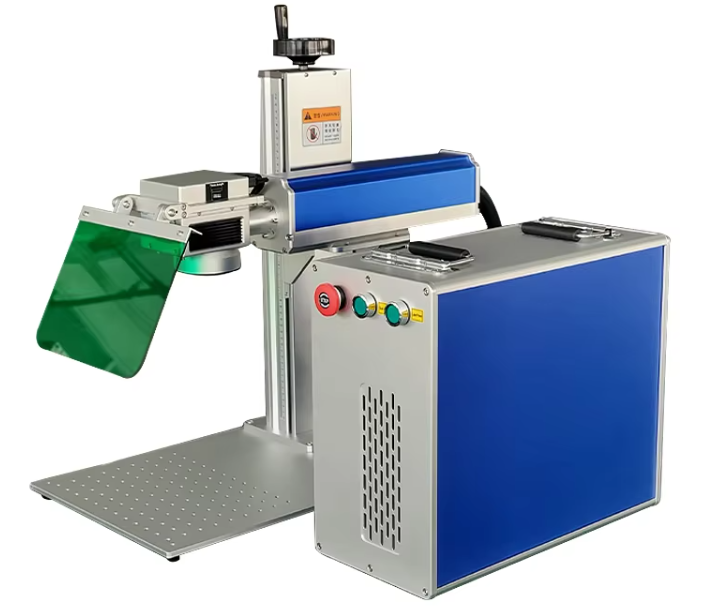

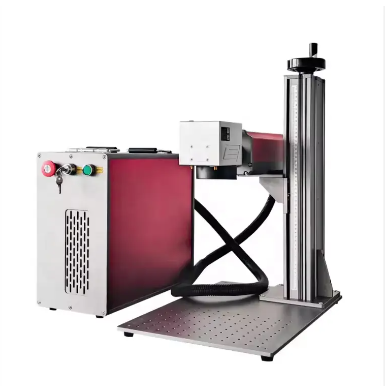

High quality auto focus 50w 100w fiber laser marking machine
2. Excellent beam quality to achieve fine small marking
3. No consumable materials, Zero-maintenance
4. Stable equipment performance, continuous 24 hours working
5.High processing efficiency, energy saving and environmental protection
|
working area
|
110*110mm, 175*175mm, 200*200mm, 300*300mm,etc.
|
|
laser power
|
20w,30w,50w,60w,100w,etc.
|
|
laser wave length
|
1064nm
|
|
marking speed
|
0-7000mm/s
|
|
repeated precision
|
±0.003mm
|
|
Life-span of fiber laser module
|
100000hours
|
|
Beam quality
|
M2 <1.5
|
|
Focus Spot Diameter
|
<0.01mm
|
|
Output Power of Laser
|
10%~100% continuously to be adjusted
|
|
Working temperature
|
5-45 centigrade
|
|
System Operation Environment
|
WindowsXP/Window 7/8/10 32/64bit
|
|
Cooling Mode
|
Air cooling--Built-in
|
|
Power Input
|
220V / 110V 50HZ / 60HZ single phase
|
|
Graphic format supported
|
BMP, PCX, TGA,TIF,PLT ,CDR, etc
|
|
Applicable material
|
Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron,etc. ABS, PES, PVC, etc
|
Samples show
