Advantage:

• Whole seamless steel industrial machinery structure with high durability and can load weight up to 1800kgs.

• High configuration: two module rack and pinion instead of ball screw, Taiwan square linear guide, high quality inverter, imported bearing, high density vacuum table with great suction strength guarantee excellent stability, precision, low noise and long life.

• Configured practical and easily –learned software with the function of breakpoint memory, compatible with CAD/CAM software, such as Type3 / Artcam / Castmate/ Mastercam / Artcut /Coredraw etc.

• Adopt unique intelligent prediction algorithm, can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.

• Make full use of potential capability to achieve high speed processing , curve-linear synchronous with high accuracy .

Features:

• 1300x2500x200 working area

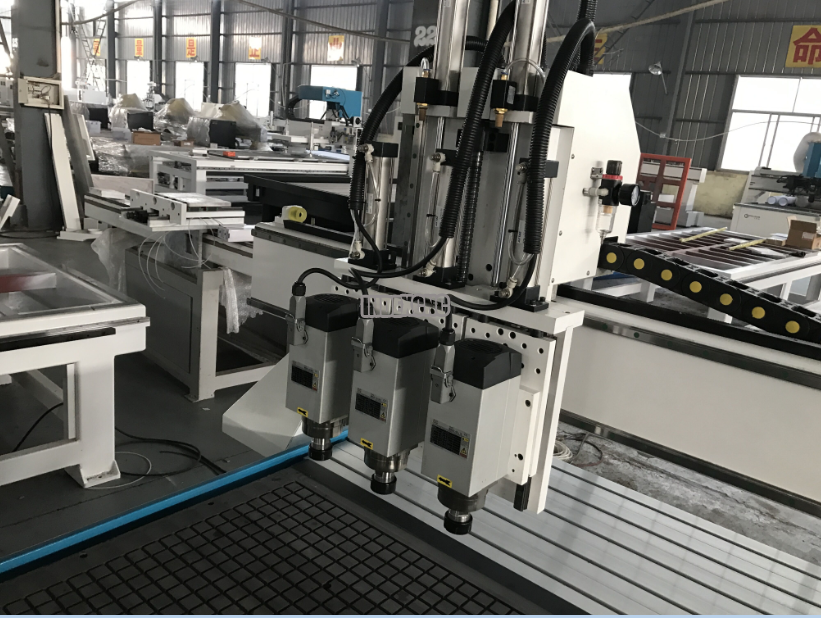

• 4.5Kw air cooling spindle*3 ,18000rpm

• 7.5 KW Taiwan DELTA inverter

• DSP control system,

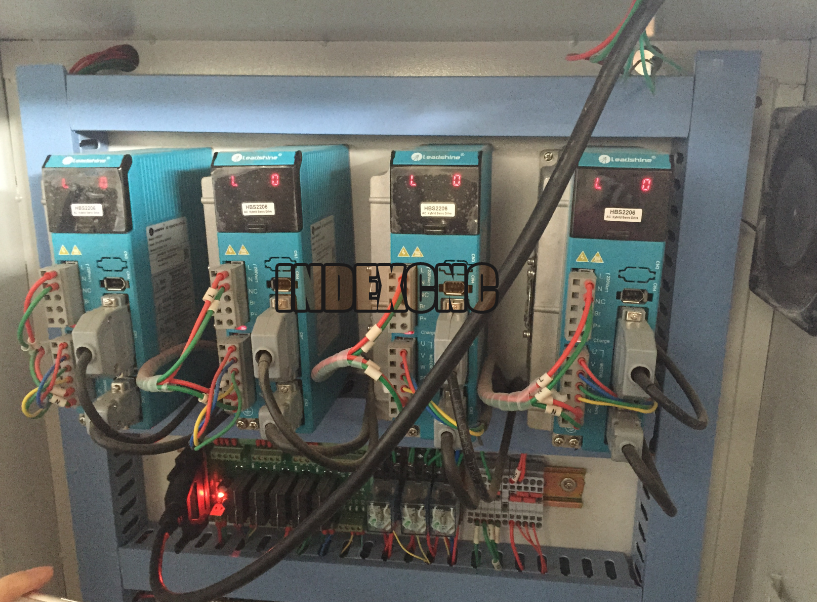

• Leadshine servo motor and 1KW servo driver

• Imported Taiwan HIWIN 20 Square Linear Guide,

• Z axis Original Taiwan TBI ball screw Transmission,

• Automatic oil mist cooling sprayer system

• 5.5KW Air type vacuum pump

• Vacuum and T-slot table

• Separated control cabinet with two sides open

• Manual Oil Lubrication system

• Japan Ormon Limit Switch,

• France Schneider safety switch

• Import milling cutter for aluminum 3mm 10pcs ,6mm 10pcs

• Voltage 3800V 3phase 60HZ(option:220v)

• Plywood case Package

• Type3/Artcam software

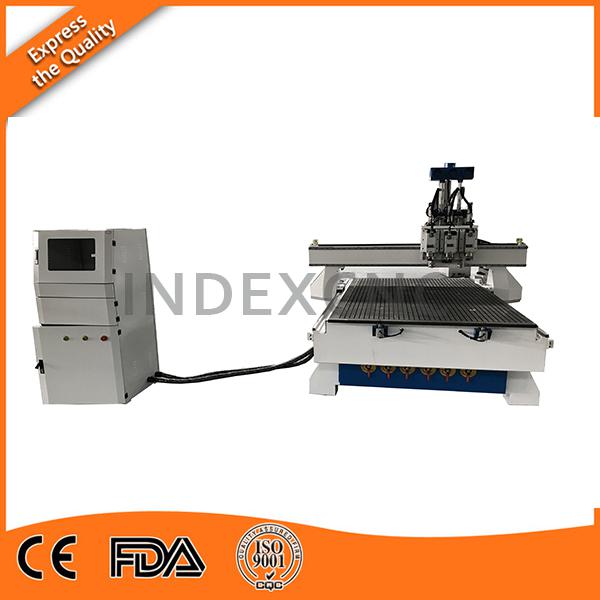

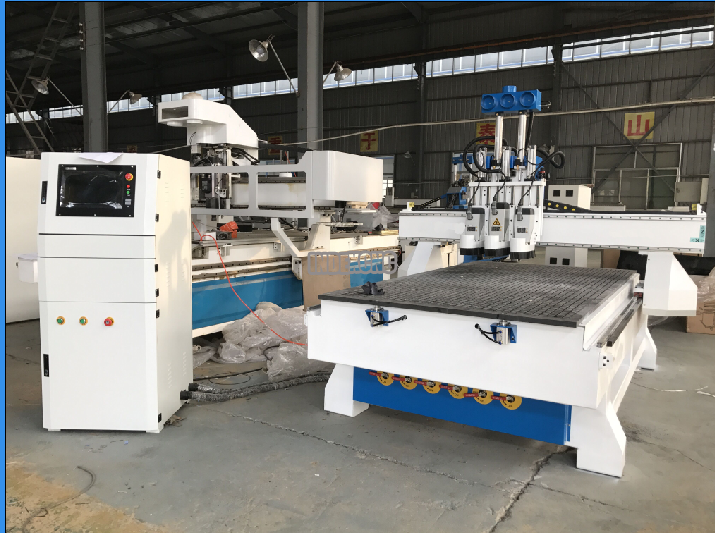

Product details:

Samples:
