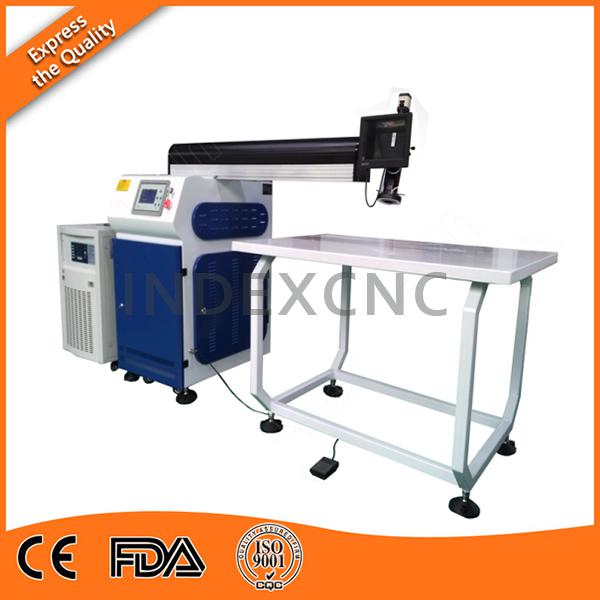

Logo laser welding 300w channel letter laser welding machine

Introduction:

Logo laser welding 300w channel letter laser welding machine with high quality from machine manufacture is used for the welding of LED illuminated billboard, exterior/interior signs, branding, door plate that made of aluminum, S/S, iron, galvanized sheet, titanium, brass, copper, and etc. Laser beam with high energy melts two metal sheets and combine them together without feeding any soldering materials. From any aspect, laser welding is the best solution and the greenest.

Features:

Model No.: INJ-300HZ

Laser source: Nd3+: YAG Φ7*145mm

Laser wavelength: 1064nm

Laser power: 300W

Single-pulse energy: 80J

Pulse duration: 0.2~20ms

Frequency range: 0~30HZ

Current range: 50-200A

Welding pool diameter: 0.3-1mm

Facula diameter: 0.1-3mm

Table size: 1000*750mm

Work radius under standard mode: max 840mm

Work radius under fiber mode: max 5000mm

Handy torch specs: max diameter 22mm, weight 136g,with water cooling,gas tube,button control

3-axis adjustment: X=500mm, Y=50mm,Z=50mm (X can be adjusted via slide rail, Y can be adjusted with a aluminum platform and Z can be adjusted on laser focus scope)

Date memory: 100 groups

Control panel: LED touch control panel in English

Power supply of laser: 220V/50HZ and 60HZ compatible

Power supply of chiller: 220V/50HZ, 1HP (60HZ chiller optional)

Grand power consumption: Max 8KW

Package dimensions: 1)1930*850*1320   2) 710*550*1050

Gross Weight: 340KG

Application:

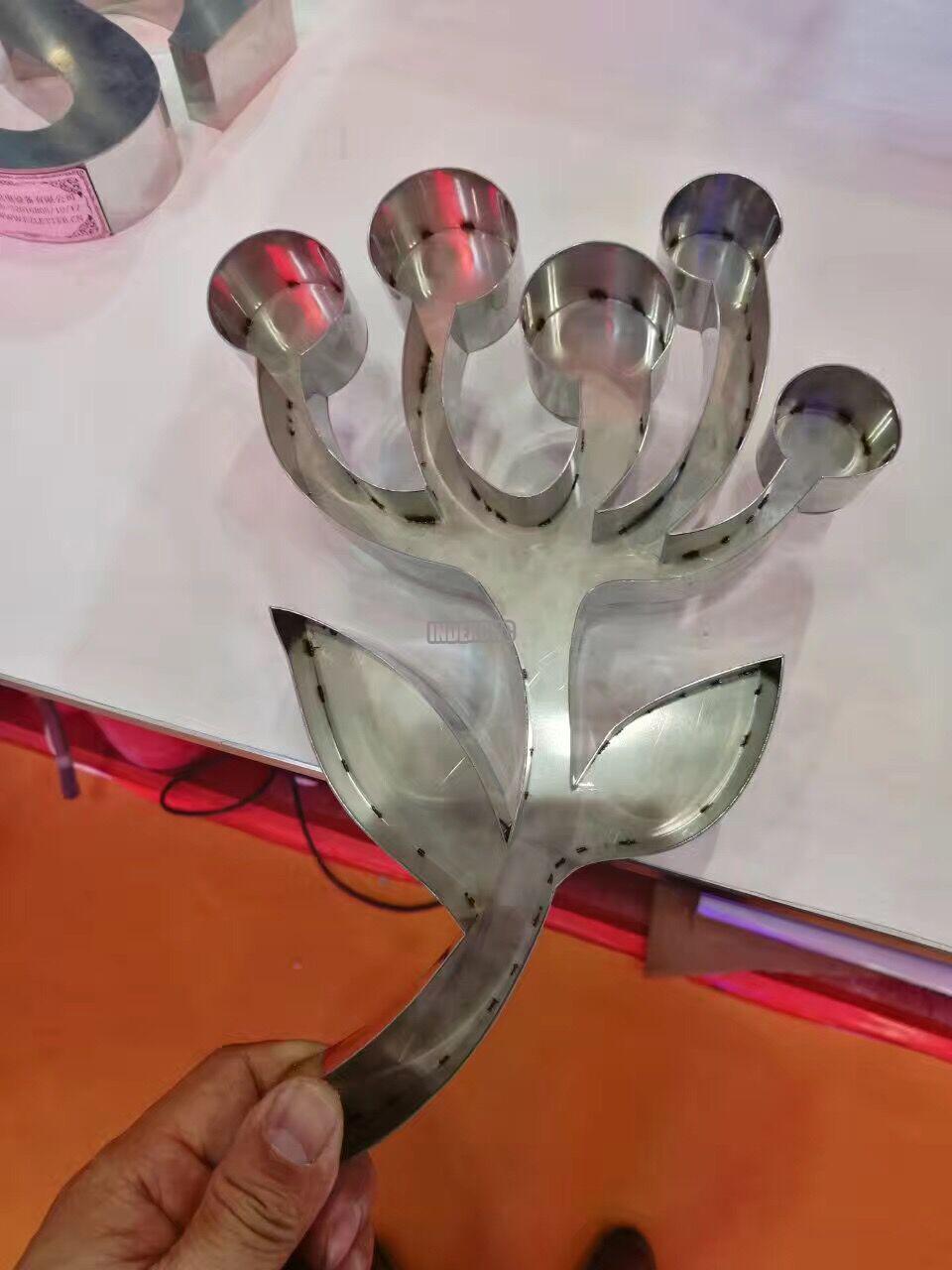

Logo laser welding 300w channel letter laser welding machine with high quality from machine manufacture is applied for the welding of various metal letters, LED illuminated letters,customized metal signage, exterior billboards and metal support.

Applicable Materials:

Logo laser welding 300w channel letter laser welding machine with high quality from machine manufacture can weld Aluminum, S/S, Iron, Galvanized sheet, Titanium, Brass, Copper, and etc.
