Welding ability thickness(Weld from one side)-handheld laser welding machine

Max welding dept

No.

Material

1kw

1.5kw

2kw

1

Stainless Steel

≤2mm

≤3mm

≤5mm

2

Mild steel/Iron

≤3mm

≤4mm

≤6mm

3

Aluminum/brass

≤2mm

≤3mm

≤4mm

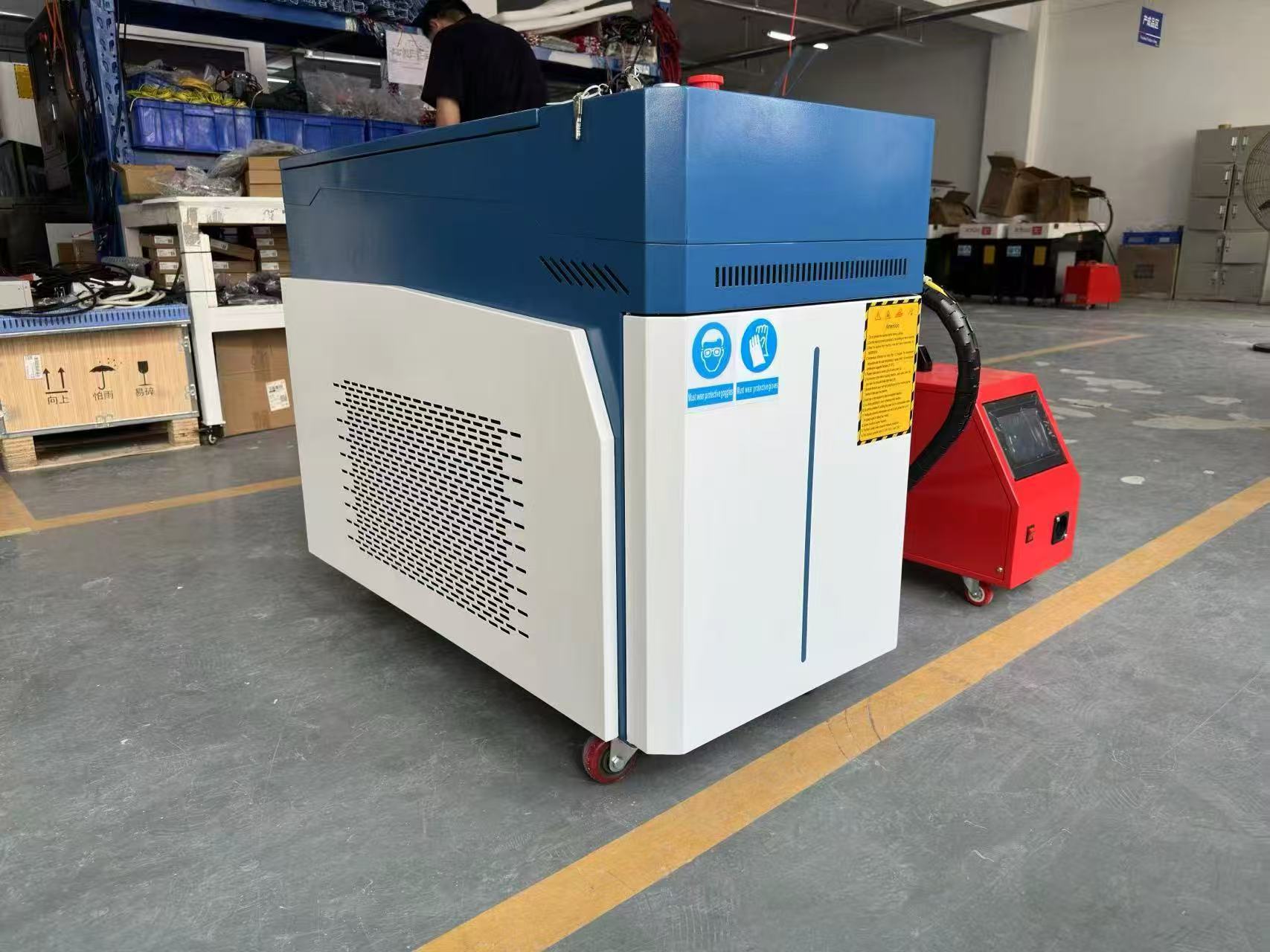

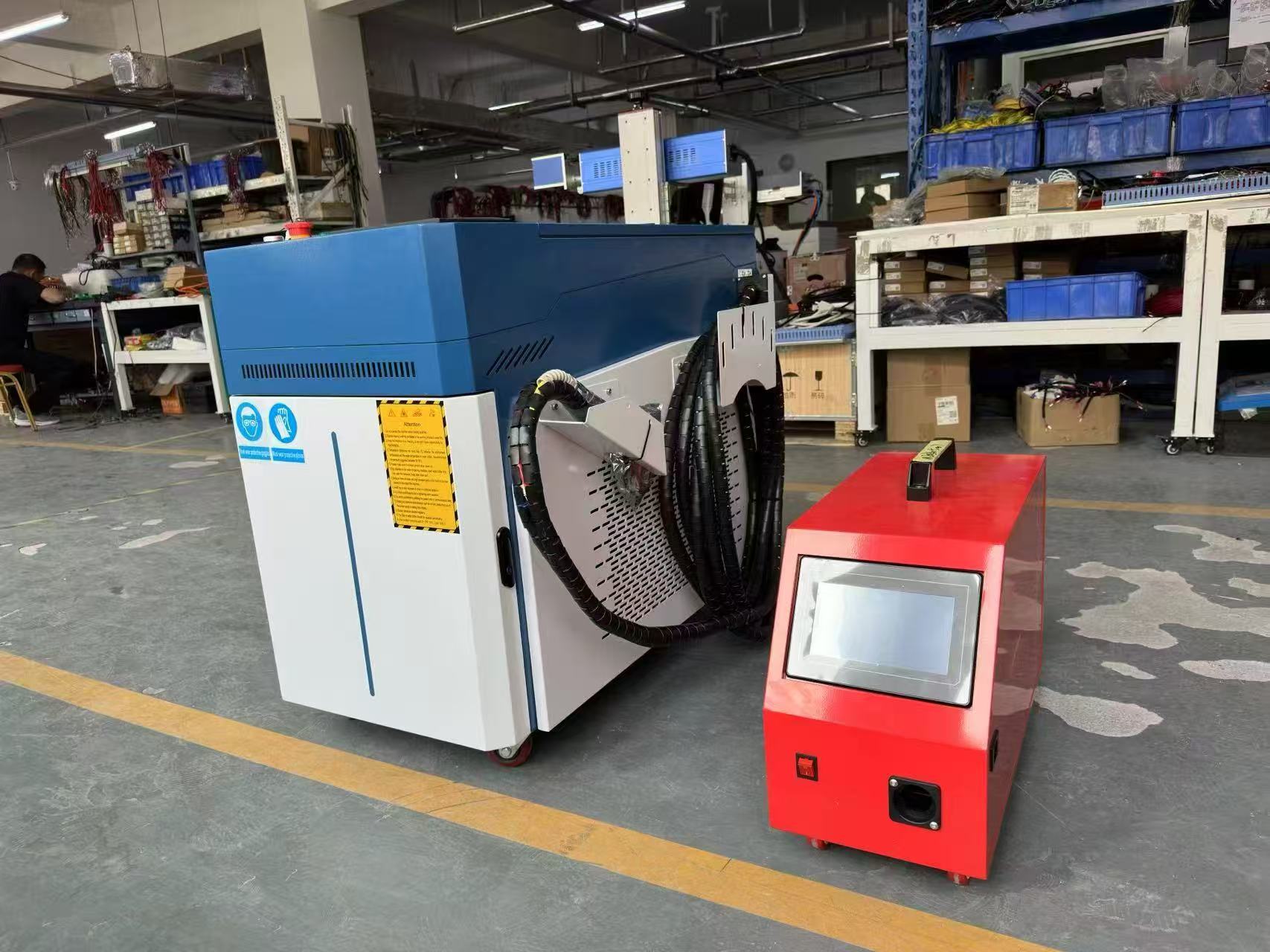

Technical Parameter - Handheld Laser Welding Machine

√ Handheld model     √ Raycus/Max laser source                  √Cable length:8m          √ Laser head:0.9KG

Model

INJ-1000/1500/2000W

I.Laser source

1

Brand

Raycus/Max/IPG

2

Output power

1kw/1.5kw/2kw

3

Center wavelength

1080nm±5

4

Fiber Cable length

8m,50μm

5

Laser pulse Frequency

20KH

II.Water Cooling

1

Water chiller

1.5P/2P/2.5P ,built-in chiller

III.Laser head

1

Brand

Shenzhen Hanwei (standard model)

2

Spot size(mm)

1.5/2.5mm , ”O”mode

3

Protective Lens

D20*2

4

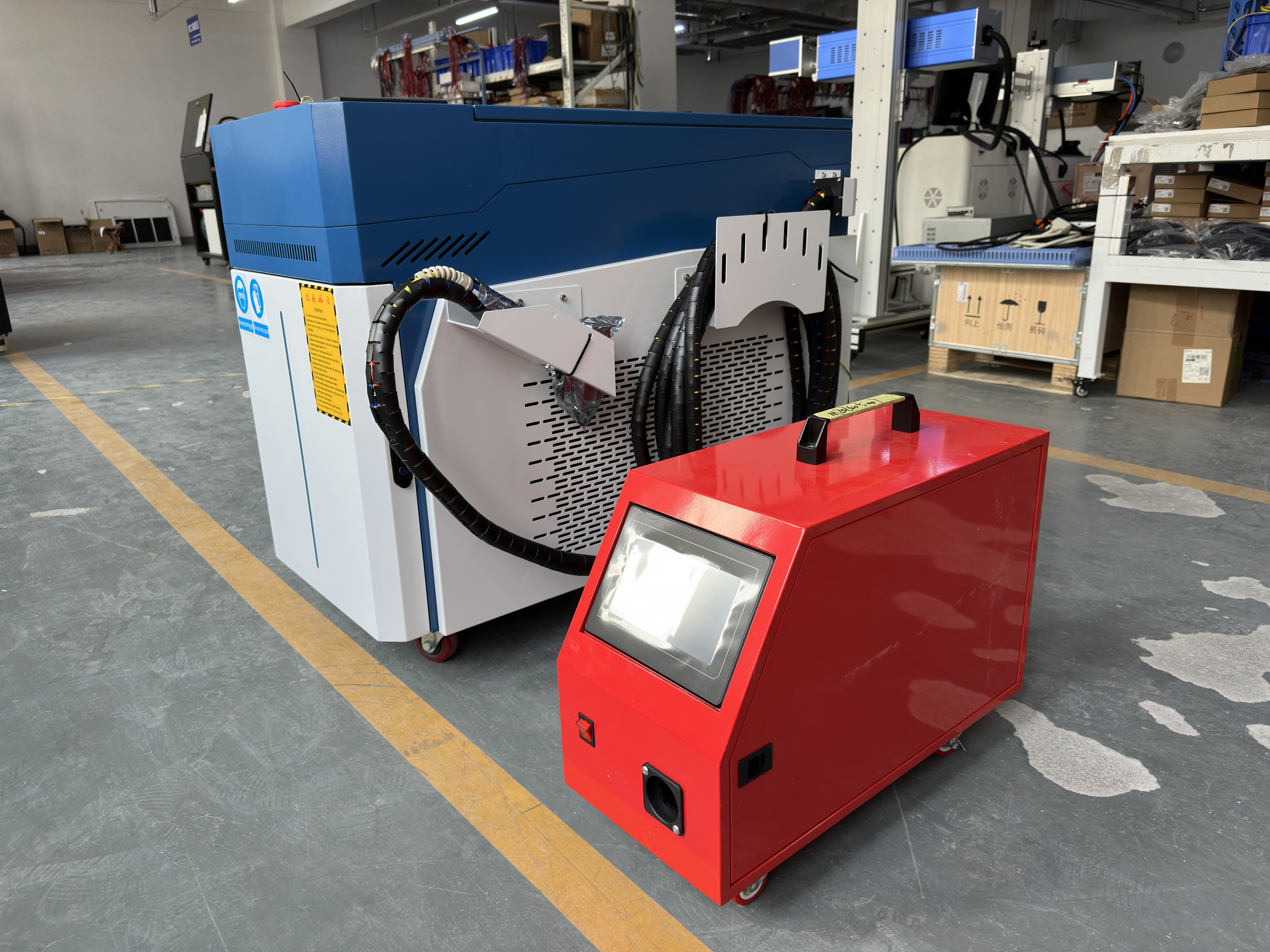

Auto Wire-feeder

Optional

IV. Gas

Nitrogen/Argon

V.Total Power Consumption

7.5kw/8.5kw/10kw

VI.Voltage

1kw and 1.5kw:220V±20%,single phase,50/60Hz
2kw: 380V±20%,3 phase,50/60Hz

VII.Dimension (CM)

Machine dimension(L*W*H)

124*63*116 cm

Machine Net Weight

210kg/18kg(auto-wire feeder)

Package size

135*76*131cm/75*35*64cm

Gross weight

250kg/24kg
