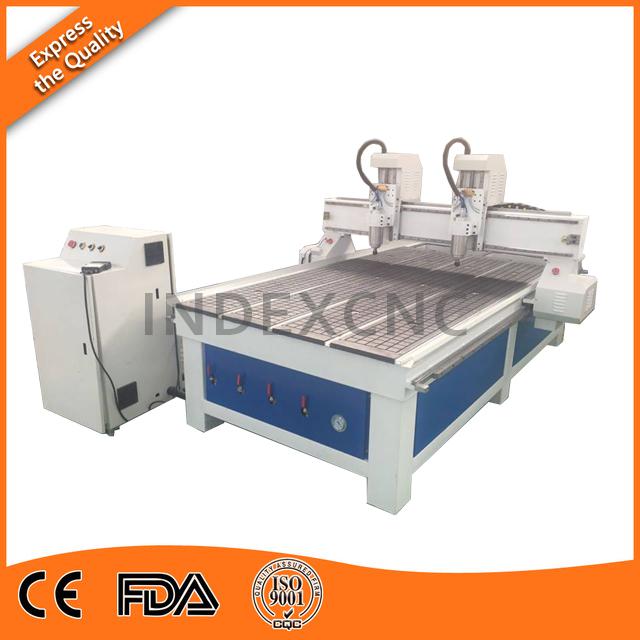

High precision independent double head cnc router, dual heads cnc router for sale

  • Product Item: INM1325-2T
  • Category: CNC Router
  • double head cnc router
  • dual heads cnc router
  • cnc router
  • double head cnc router for sale
  • Product Manual:double head cnc router, dual heads cnc router for sale
  • SPECIFICATION

    High precision independent double head cnc router, dual heads cnc router for sale

    >>>>>>1. Machine features

    The idle speed is up to 35 meters/min, engraving speed is 25 meters/min 2. Adopting advanced DSP system, operated with the handle, convenient operation, designed with more human nature. 3. Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smoother curves.

    This machine is mainly used to processing wood materials, such as wood door, furniture, kitchen ware and some other cutting and 3D engraving works. it also can work on acrylic, MDF, PVC etc.

    >>>>>2. Specification of double heads cnc router

    NO. Description

    3D double heads cnc router

    1

    Table size

    1500×3500mm

    2

    X,Y working area

    1300X2500mm

    3

    Z working area

    200mm

    4

    Max. speed

    >30m/min

    5

    Interface

    USB port

    6

    Command

    G code*.u00*.mmg* plt

    7

    Surroundings for software

    windows982000/xp/Win7

    8

    Powerspindle is not included

    8.87KW

    9

    Working voltage

    380V 50Hz

    10

    Spindle power (domestic made)

    2*4.5KW (domestic/Italy HSD)

    11

    Spindle rotating speed

    0-24000rpm/min

    12

    Drive Motor

    Servo drive motor

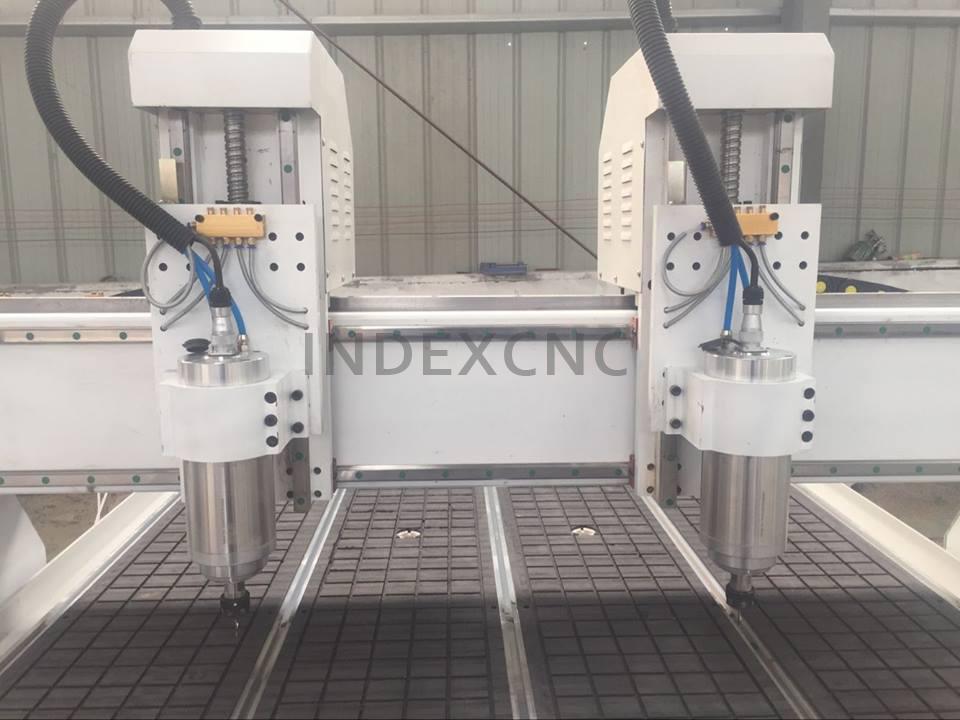

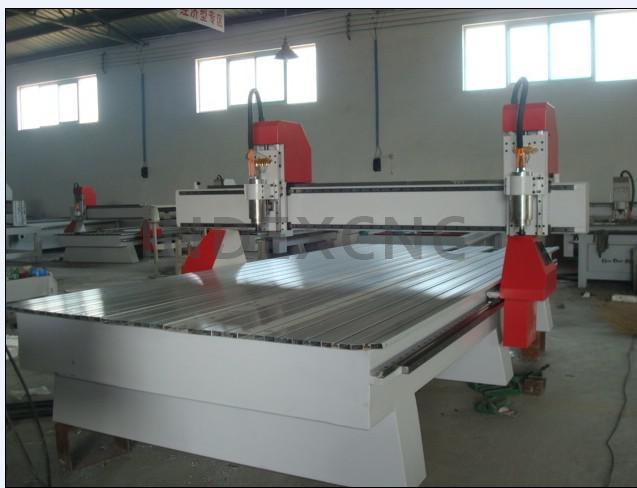

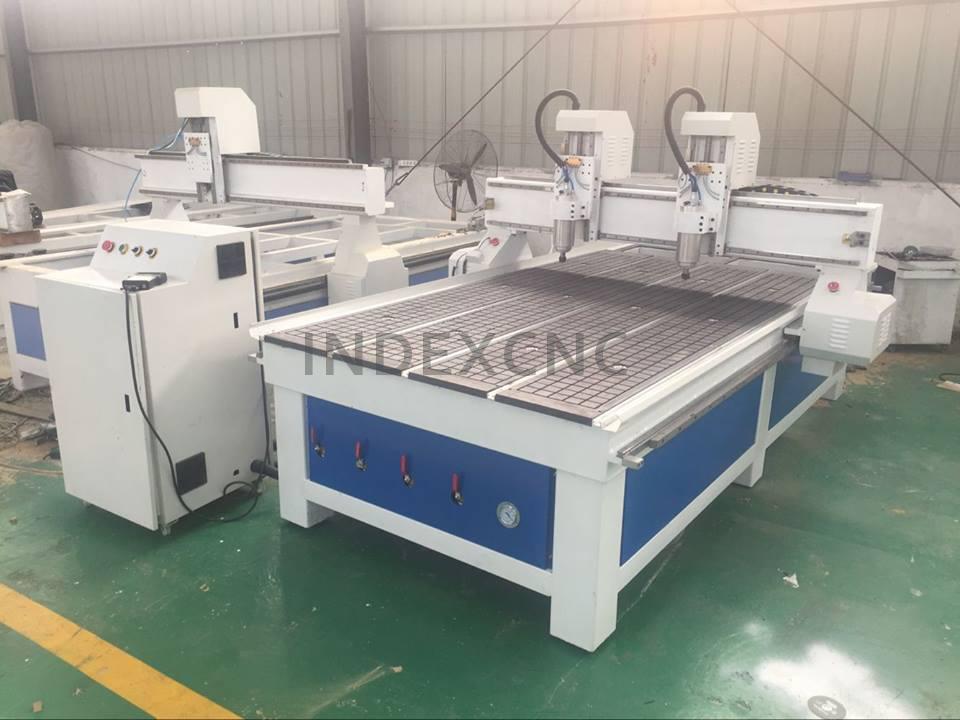

    >>>>>3.Machine details of double heads cnc router




    double heads cnc router




    >>>>>4. samples of double heads cnc router






    After sale service

    1. All of our machines warranty for one year.We will offer good parts for free if your parts are broken during warranty. which was not caused by artificial.

    2. Our technican can offer free training in our workshop.

    3. Our technican can go to your place and offering service if you want.

    4. We are no holiday and vacations for your after-sale problems.
