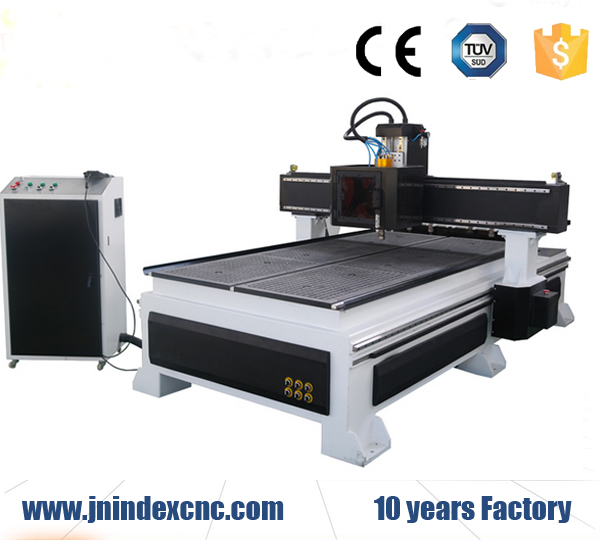

IND1325M ATC CNC router and wood carving router for sale

Product Item: INM1325

ATC CNC ROUTER

wood carving machine

cnc router

cnc router for sale

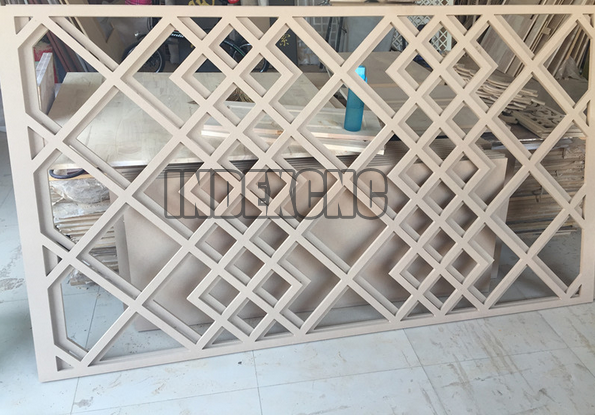

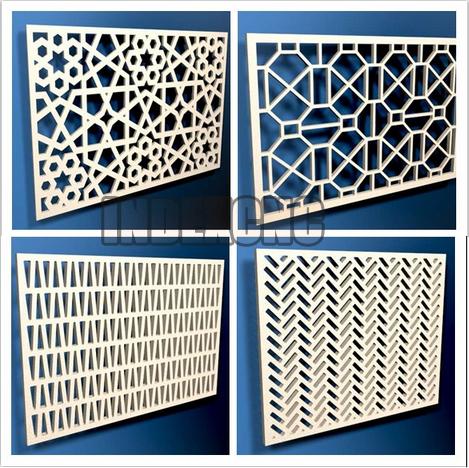

Product Manual：INDEX CNC control linear ATC CNC wood router and CNC wood carving machine is used for furniture decoration, musical instruments, wooden crafts, solid wood furniture, MDF paint-free door, wood composit

SPECIFICATION

IND1325M ATC CNC router and wood carving router for sale

Features of ATC CNC router

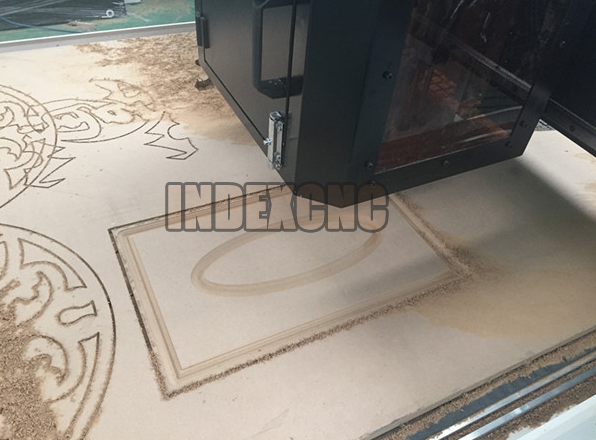

The machine is suitable for mass production, mainly used in doors and furniture processing. Can be carved, drilling, cutting, leading edge, mainly used for cutting and engraving and milling.

This section models of the mechanical, electrical components are all top international products. Such as Italy HSD automatic tool change spindle, Taiwan's new generation of control systems, Taiwan HIWIN, Schneider Electric components, Japan servo drive system.

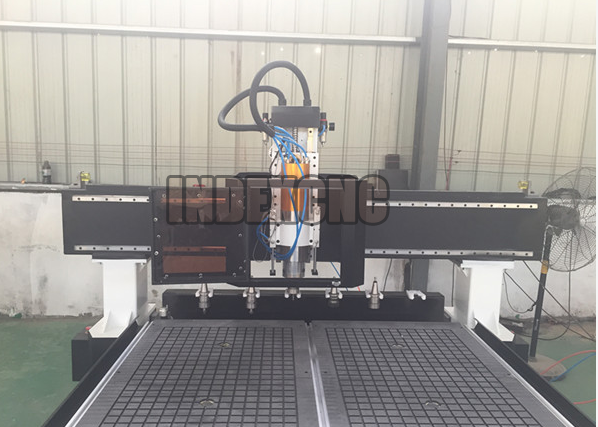

Armless ATC, ATC 8, tool change time of just 8 seconds.

Bilateral track conveyor units are heavy cutting and processing models.

Flight attendants at speeds up to 60 m / min.

Parameter of ATC CNC router

NO.	Description	Parameter
1	X,Y,Z Working Area	1300x2500x200mm
2	X,Y,Z Accuracy	±0.02mm
3	X,Y,Z Repositioning Accuracy	±0.0254mm
4	Table Surface	Vaccum Table
5	Frame	Welded by steel
6	Transmission	Hiwin square rail and rack gear
7	Max. Power Consumption	2.5kw~3Kw (without spindle)
8	Max. Rapid Travel Rate	60000mm/min
9	Max. Working Speed	30000mm/min
10	Spindle Power	7kw water cooling (HSD 9kw for option)
11	Spindle Speed	0-24000RPM
12	Driver and Motor	YASKAWA servo motor and driver
13	Working Voltage	220/380V 50/60Hz
14	Command Language	G Code
15	Operating System	DSP System (Options: Syntec)
16	Computer Interface	USB
17	Software	Type3 or Artcam
18	Running Environment Temperature	0 - 45 Centigrade
19	Relative Humidity	30% - 75%
20	Inverter	Delta
21	Electrical components	Schneider
22	Limit switch	OMRON
23	Tool sensor and lubrication	With
