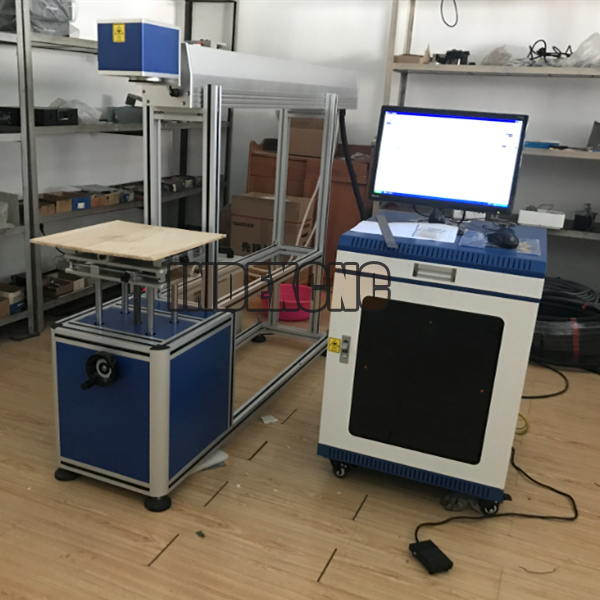

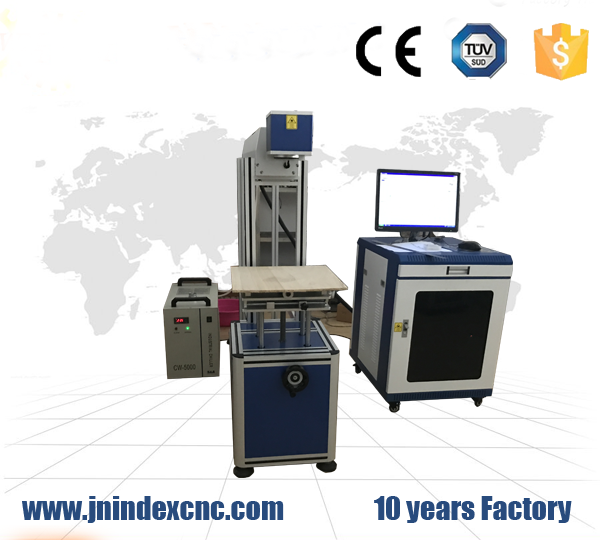

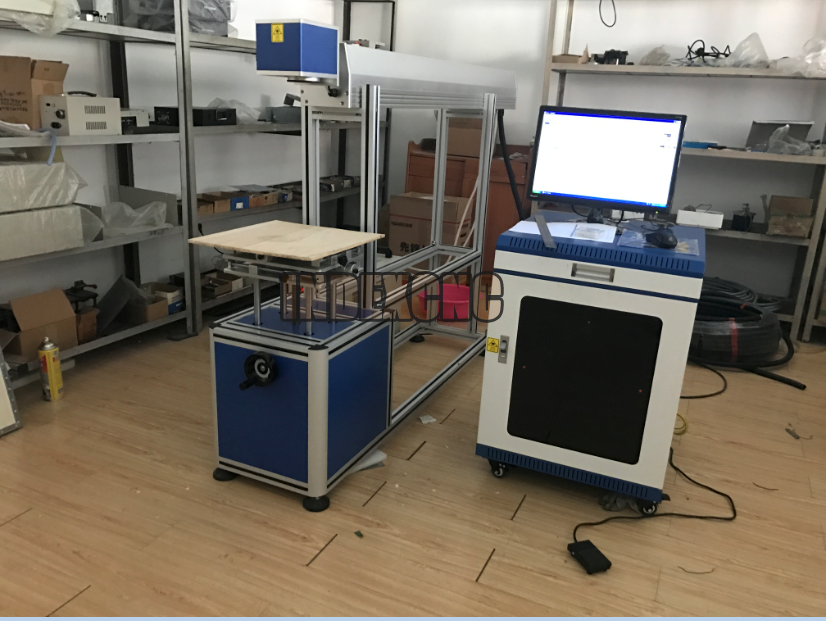

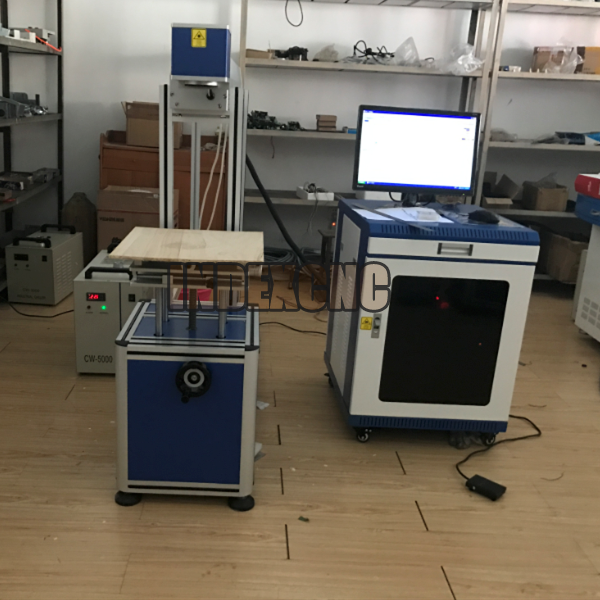

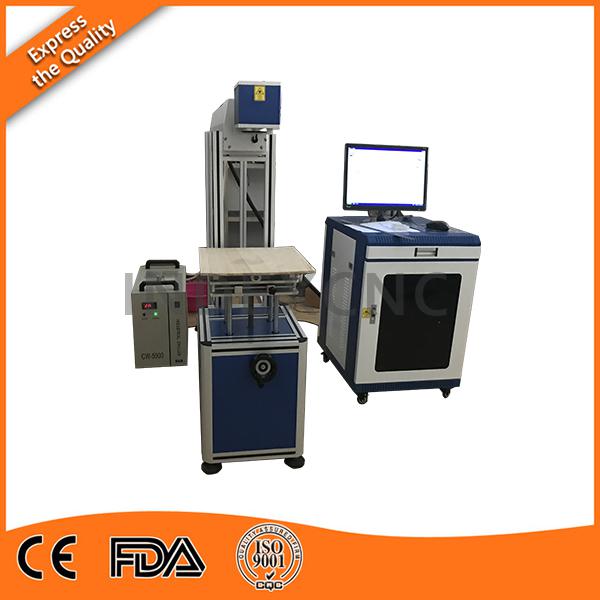

High efficiency Co2 laser marking machine for sale

Product Item: INJ-100C

Category: Galvo Co2 laser marking machine

Co2 laser marking machine

Co2 laser marking machine for sale

co2 laser marking machine for sale

co2 laser marking machine price

Product Manual：High efficiency Co2 laser marking machine for sale with consumable price

SPECIFICATION

High efficiency Co2 laser marking machine for sale

Features

1. It seldom has a screw loose and its life span is as long as 1,0000 hours; the cost of use and maintenance is very low; it can keep on working for a long time;

2. The software has strong compatibility;

3. It can even the figures, laminate set up parameters and preview the place of infrared light.

4. The software controlling system has the interface of WINDOWS, which is compatible with files output by software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc;

5. It can support graphic file formats such as PLT, PCX, DXF, BMP etc; and directly use fonts such as SHX, TTF;

6. It also can mark automatic code, sequence number, batch number date, bar code and two-dimensional code and so on.

Parameters

NO. Model INJ-100w
Laser Power	100w
Working Area	110110mm/150150mm/200200mm/300300mm
Cooling Mode	Water Cooling
Laser Wavelength	10.64um
Response Time	0.5ms
Frequency of pulse	20-100KHz
Marking Depth	≤0.4mm
Marking Speed	≤8000mm/s
Marking Lines	1-10 lines
Minimum Line Width	0.01mm
Minimum Character	0.15mm
Repeatability Accuracy	±0.002mm
Resolution Ratio	0.1mm
Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000
Control Software	EZCAD Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power	≤1.2KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog
Supply Voltage	220V/50Hz/10A
