RF 30w 60w Galvo laser marking machine for coconut

Product Item: INJ-30C

Category: Galvo Co2 laser marking machine

coconut laser

30w coconut laser machine

laser marking coconut

co2 laser marking machine

Product Manual：INDEX CNC offer you the best price for air cooling co2 laser marking machine for coconut, leather, wood, paper, plastic, acrylic, glass

SPECIFICATION

RF 30w 60w Galvo laser marking machine for coconut

No1.Technical Parameters of coconut laser

Laser type	co2 laser
Laser power	30w/60w RF laser
Laser Wavelength	1065±10nm
Q-frequency	20KHz~100KHz
Divergence	0.3mard
Marking range	110110mm / 145145mm / 175175mm / 200200mm
Minimum line width	0.01mm
Minimum character	0.1mm
Marking speed	10000mm/s
Marking depth	0 ~0.5mm
Engraving line speed	≤7000mm/s
Repeatability accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking Format	Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency,etc.
Graphic format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
working voltage	110/220V±10% 50/60Hz
Unit power	<0.5kw
Use of the environment	Clean and dust free or dust less
Working condition: Temperature	10°C-40°C
Working condition:Humidity	5 free of condensed water
Laser module life	>20000 hours
Net weight	180kg
Packing size	21606601530mm

No2.Advantage of coconut laser

1. RF laser tube can be refilled comparing with glass laser tube

2. The overall style in construction, equipment, a simple operation, maintenance facilities available in different industries

3. To different sectors may come out of the various types, industry, more extensive use of the
production stage, to the assembly, without change in velocity in contact with no pauses high quality marked the play.

4. The result is very delicate in engraving art and photography, the process of engraving graphics
can be computerized

5. Laser processing of the entire process by computer control, and high-speed galvanometer system and the superior performance of the servo motor, fast processing, in particular the processing of complex pictorial relative advantages of traditional processing methods has become more obvious.

6.24-hour continuous operation stability .Simple power connector, plug-and-play .Powerful software, supports AutoCAD, CorelDraw mapping dxf, plt and bitmap drawings bmp format.

7 .Power regulation by the software and processing products arbitrary depth adjustable –Marking a clear, beautiful, permanent and difficult to wear.

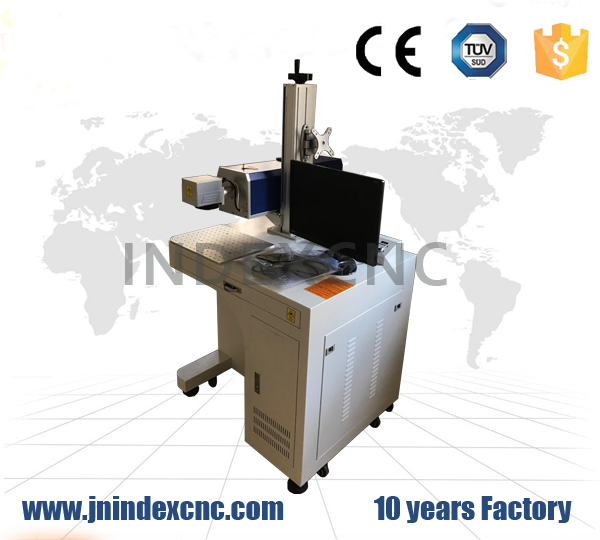

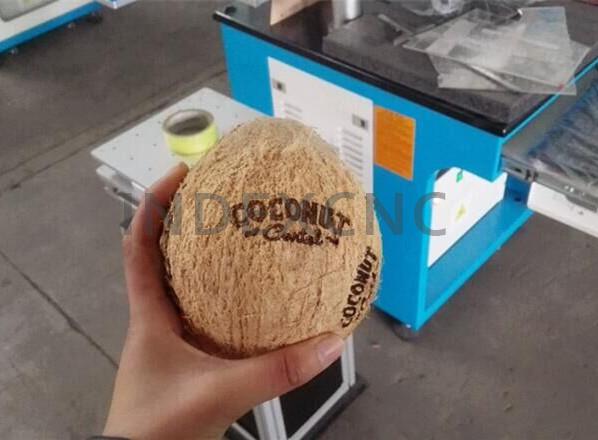

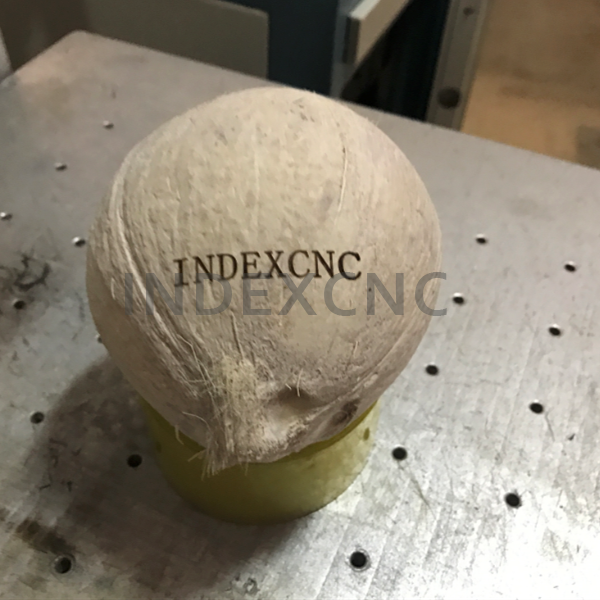

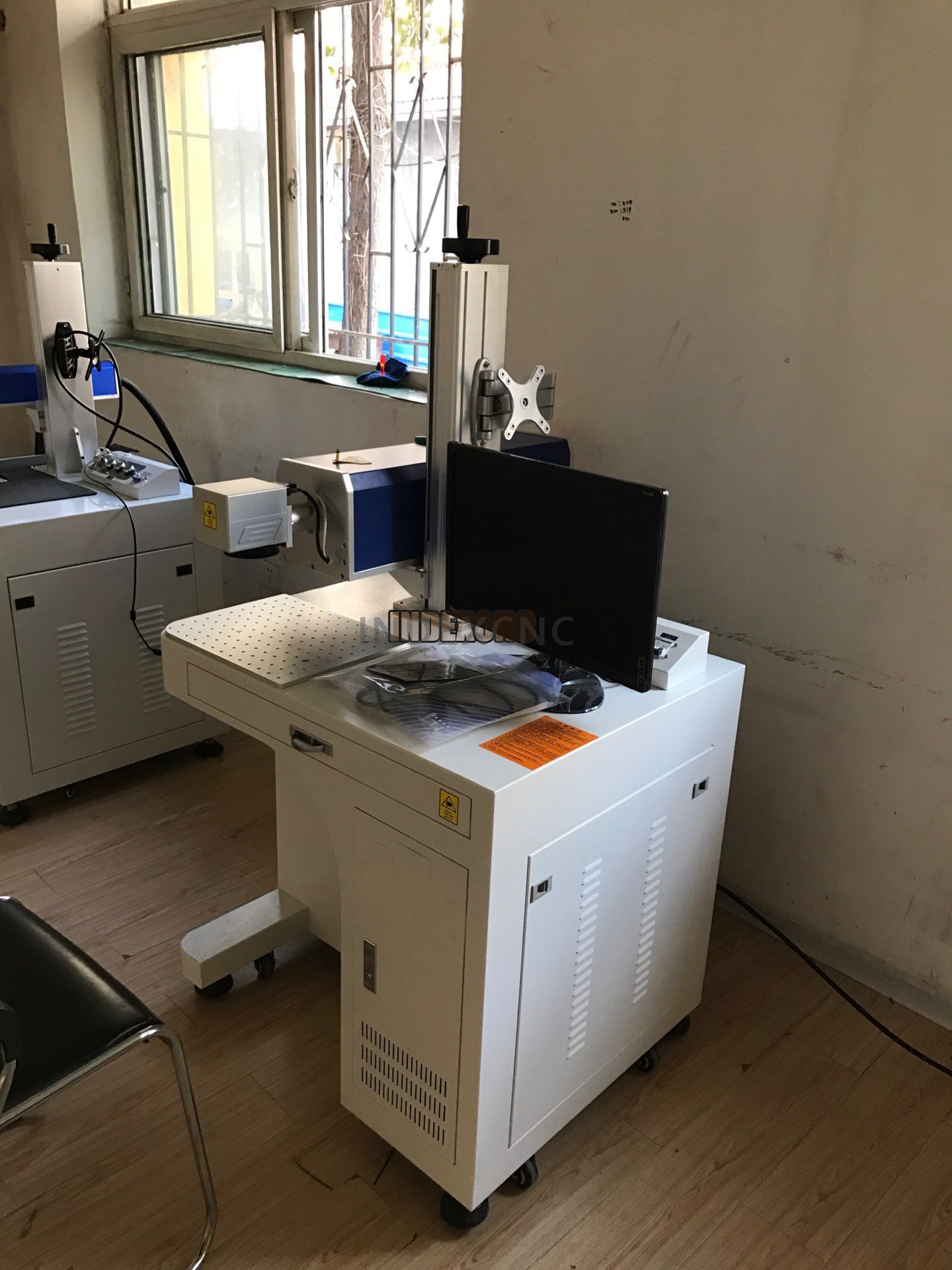

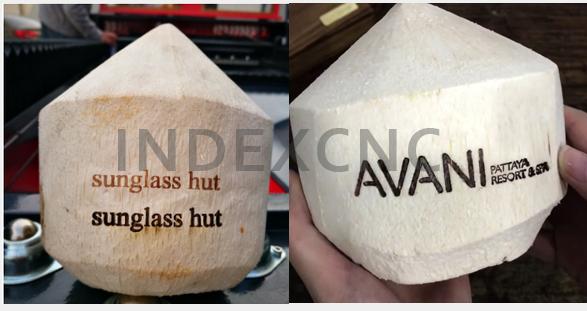

No3.Photo of Coconut laser
