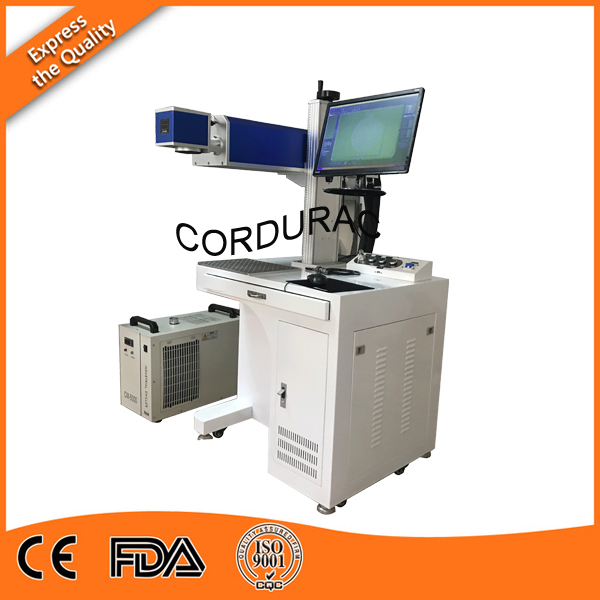

100w RF Co2 laser marking machine for leather, acrylic,wood
Technical Data:
Technical Parameter-
CO2 laser marking machine
|
Model |
HM- 10C/30C/60C/100C |
|
Laser Power |
10W/30W/60W/100W |
|
Laser Wavelength |
10.64um |
|
Q-frequency |
20KHz~100KHz |
|
Divergence |
0.3mard |
|
Marking Range |
100*100mm/200*200mm/300*300mm |
|
Minimum Line Width |
0.02mm |
|
Minimum Character |
0.15mm |
|
Marking Depth |
0 ~0.5mm |
|
Engraving Line Speed |
≤7000mm/s |
|
Repeatability Accuracy |
±0.001mm |
|
Beam Quality |
M2:1.2~1.8 |
|
Marking Format |
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batch number,Serial number,Frequency,etc. |
|
Graphic Format Supported |
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
|
Working Voltage |
220V±10%/50Hz/4A |
|
Unit Power |
<0.5kw |
|
Use of the Environment |
Clean and Dust Free or Dust less |
|
Working Condition:Humidity |
5%-75%,Free of Condensed Water |
|
Laser Module Life |
>100000 hours |
|

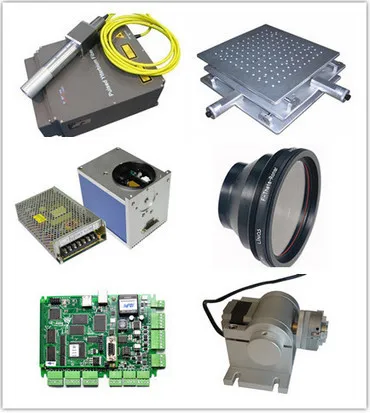

Main Parts- fiber laser marking machine
|
|

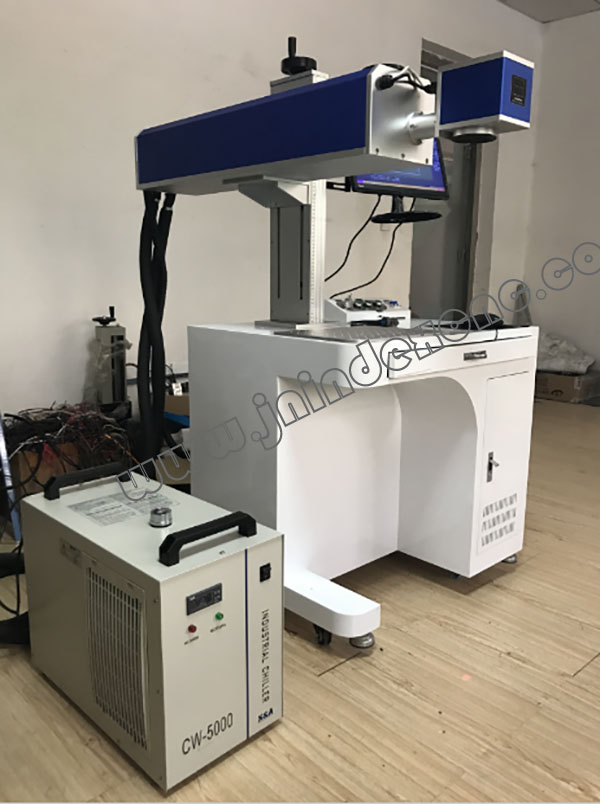

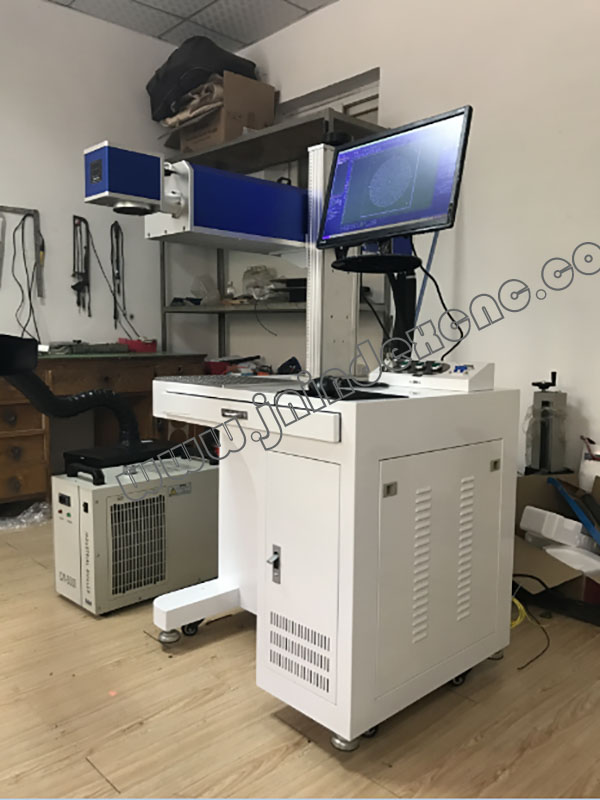

Machine details:
Samples
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,
make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
- Delivery and Shipping
1.The delivery lead time would be 5-7 working days after recieving the payment.
2.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.
